Of course. "Dell server replacing" can mean a few different things, so I'll cover the most common scenarios to give you a comprehensive guide.

Scenario 1: Replacing a Failed or Failing Component (Most Common)

This is the most frequent reason for "replacing" a server. It involves swapping out a faulty or outdated part like a hard drive, memory stick, or fan.

A. Replacing a Hard Drive (HDD/SSD) in a RAID Array

This is a very common task. The key is to do it safely without losing data or breaking the RAID configuration.

Prerequisites:

1. Identify the Failed Drive: Use the iDRAC (Integrated Dell Remote Access Controller) web interface or the OpenManage Server Administrator (OMSA) software to find the drive that has failed. It will typically be marked with a red or amber icon and a state like "Foreign," "Predictive Failure," or "Failed."
2. Get the Correct Replacement: You must use a hard drive certified for your specific server model. Using an uncertified drive can lead to compatibility issues, performance problems, and voiding your warranty. Check your server's documentation or the Dell Support website for the part number.
3. Prepare the New Drive: If the drive is new and not from the factory, it must be "prepared" (erased and configured) by the RAID controller. The easiest way is to insert it into an empty slot in the server. The controller will automatically detect it and prepare it. If the drive is from a Dell spare parts kit, it often comes pre-configured.

Step-by-Step Guide:

1. Access the iDRAC: Open a web browser and navigate to the iDRAC IP address of your server (you can find this in your server's BIOS or DHCP server logs). Log in with your administrator credentials.
2. Go to Storage: In the iDRAC interface, navigate to Storage -> Physical Drives.
3. Locate and Remove the Failed Drive: Identify the failed drive in the list. Note its slot number. Click the checkbox next to it and select "Remove" from the actions menu. This prepares the system for the physical removal.
4. Physical Replacement: Power down the server or ensure it's in a safe state for hot-swapping (if supported by your RAID configuration and hardware). Wait for the drive carrier's status light to turn solid green or amber before removing it. This indicates it's safe to eject.
   • Press the release button on the drive carrier.
   • Slide the drive carrier straight out.
   • Remove the failed drive from the carrier.
   • Insert the new drive into the carrier and slide it firmly into the same empty slot until it clicks into place.
5. Rebuild the RAID Array: The RAID controller will automatically detect the new drive. Go back to the iDRAC Storage -> Physical Drives screen. You should see the new drive listed with a status of "Online" or "Rebuilding." The server will now begin the process of rebuilding the RAID array, which can take several hours depending on the size of the drives and the RAID level. Do not power off the server during this process.

B. Replacing Memory (RAM)

Prerequisites:

• Identify the Correct RAM: You must use memory that is on the Dell Qualified Vendor List (QVL) for your server model. Mixing different speeds, sizes, or types can cause instability. The new memory must match the existing memory in terms of speed, voltage, and technology (e.g., DDR4, ECC).
• Handle with Care: RAM modules are sensitive to static electricity. Always ground yourself by touching a metal part of the server chassis before handling the modules.

Step-by-Step Guide:

1. Power Down and Ground: Shut down the server completely and unplug it from the power source. Press the power button once to discharge any residual electricity.

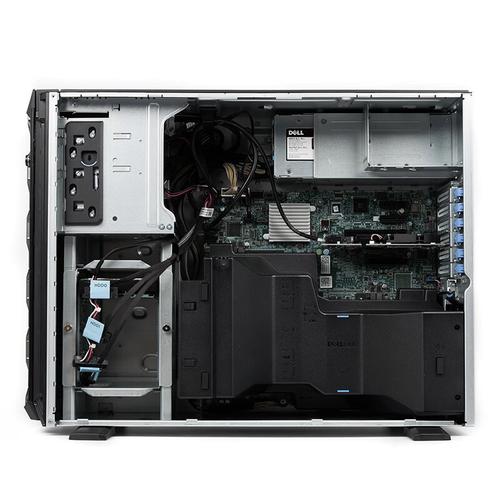

2. Locate Memory Slots: Open the server's side panel. The memory slots are typically located on the top or bottom of the motherboard.
3. Remove Old Memory: Release the retention clips on either end of the memory module. The module will pop up at an angle. Carefully pull it out of the slot.
4. Install New Memory: Align the notch on the new memory module with the key in the memory slot. Insert the module into the slot at a 45-degree angle and press it down firmly until the retention clips click into place on both sides.
5. Close and Power On: Close the server panel, reconnect the power, and power on the server. The system should automatically recognize the new memory.

C. Replacing a Fan

This is usually a simple hot-swappable process.

Step-by-Step Guide:

1. Identify the Failed Fan: Use the iDRAC or OMSA to find the specific fan that has failed. It will be listed with an amber or red status.
2. Physical Replacement: Locate the fan in the server chassis. It will be held in by a lever or a release button.
   • Press the release lever/button.
   • Slide the failed fan straight out.
   • Slide the new fan (again, must be a Dell-certified part) into the same slot until it clicks into place.
3. Confirmation: The new fan should spin up immediately. The iDRAC status should change to "OK" or "Green" within a minute or two.

Scenario 2: Replacing an Entire Server (Decommissioning and Migrating)

This is a much larger project involving replacing an old server with a new one.

Phase 1: Planning and Discovery

1. Inventory the Old Server:
   • Hardware: Model, CPU, RAM, number and type of hard drives, RAID controller, network cards (NICs), HBA cards.
   • Software: Operating System (OS) version and edition, applications (SQL, Exchange, IIS, etc.), roles, and features.
   • Configuration: IP addresses, DNS settings, domain membership, shares, printers, and any custom scripts or scheduled tasks.
2. Choose the New Server:
   • Based on your inventory, select a new Dell server (e.g., PowerEdge R-series) that meets or exceeds the performance and capacity requirements of the old one.
   • Consider future growth.
3. Plan the Migration:
   • P2V/V2V (Physical/Virtual to Virtual): If the goal is to move to a virtual environment, plan to convert the physical server.
   • Bare-Metal Migration: If staying physical, plan to install the OS and applications from scratch on the new hardware.
   • Side-by-Side Migration: The most common method. Set up the new server alongside the old one, migrate data and services, then decommission the old server.

Phase 2: Preparation

1. Order and Receive: Order the new server and all necessary components (memory, drives, etc.).
2. Rack the New Server: Physically install the new server in the rack, connect power and network cables.
3. Prepare the Old Server for Decommissioning:
   • Back up all critical data.
   • Unsubscribe the server from any services (domain, monitoring systems, etc.).
   • If required by policy, use disk-wiping software to securely erase the data from the old drives.

Phase 3: Migration

• Option A: Fresh Install (Recommended for Major OS/Upgrades)
  1. Install the OS on the new server.
  2. Install all necessary applications and roles.
  3. Restore data from the backup.
  4. Re-configure IP addresses and services.
• Option B: Clone/Restore (Good for Identical Hardware)
  1. Use a tool like Dell's System Deployment Toolkit (SDTK) or a third-party imaging solution to create an image of the old server's drives.
  2. Restore that image to the new server. This may require driver injections if the new server has different hardware (especially storage or network controllers).

Phase 4: Cutover and Decommissioning

1. Final Checks: Test all applications and services on the new server thoroughly.
2. Cutover: Plan a maintenance window. Change the DNS records to point to the new server's IP address. Shut down the old server.
3. Decommission: Physically remove the old server from the rack. Label the drives and store them securely according to your organization's policy.

Essential Tools and Resources

• Dell EMC Support Website: Your single most important resource. Here you can find:
  • Service Manuals: Step-by-step guides for hardware replacement.
  • Owner's Manuals: General information about your server.
  • Drivers and Downloads: The latest firmware (BIOS, iDRAC, RAID controller) and drivers.
  • Dell EMC Quick Resource Packs (QRPs): Detailed technical documentation.
  • Parts Lookup: To find the exact part numbers you need.
• Dell iDRAC / OpenManage: The primary interfaces for monitoring, configuring, and managing your server remotely.
• Dell OpenManage Server Administrator (OMSA): A software agent for in-depth hardware monitoring and management within the OS.

Safety First:

• Always power down the server before performing any internal hardware changes, unless you are certain the component is hot-swappable and your RAID configuration supports it.
• Use an anti-static wrist strap to prevent electrostatic discharge (ESD) which can destroy sensitive components.
• Follow ESD safety procedures at all times.
